Z4006
Xiongyi
| Availability: | |
|---|---|
Our precision bench drill press machines are designed for accurate and efficient drilling operations in workshops, factories, and industrial production environments.
Featuring a rigid column structure, high-speed spindle system, and stable drilling performance, these benchtop drilling machines provide excellent accuracy for metal, plastic, and mechanical component processing.
Available models include Z4004A, Z4006, Z4006A, Z4006B, Z4112B, and Z4116B, covering different drilling capacities from 4mm to 16mm to meet various machining requirements.
The bench drill press machine adopts a robust cast structure with high rigidity, ensuring stable operation and reducing vibration during drilling.
The precision-machined spindle system provides smooth rotation and reliable accuracy, making it suitable for applications requiring consistent hole quality.
Our bench drilling machines are available with different spindle capacities:
4mm drilling capacity for precision small-part machining
6mm drilling capacity for general workshop applications
12mm and 16mm drilling capacity for heavier drilling operations
This range allows customers to select the right machine according to material thickness and production requirements.
The machines feature multiple spindle speed options:
High-speed models:
2800–5800–9000 rpm
5000–8000–15000 rpm
Standard industrial models:
480–800–1400 rpm
2440–4100 rpm
Adjustable spindle speeds allow users to optimize drilling parameters for different materials.
Equipped with accurate spindle taper options:
B10 spindle taper
B16 spindle taper
MT2 spindle taper
The spindle design ensures strong tool holding capability and improved drilling accuracy.
The compact structure saves workspace while maintaining professional drilling performance.
Advantages include:
Small footprint
Easy installation
Simple operation
Suitable for workshops and production lines
The bench drill press machines use reliable motors ranging from:
0.18 kW
0.25 kW
0.37 kW
0.55 kW
The motor provides stable power output for continuous drilling operations.

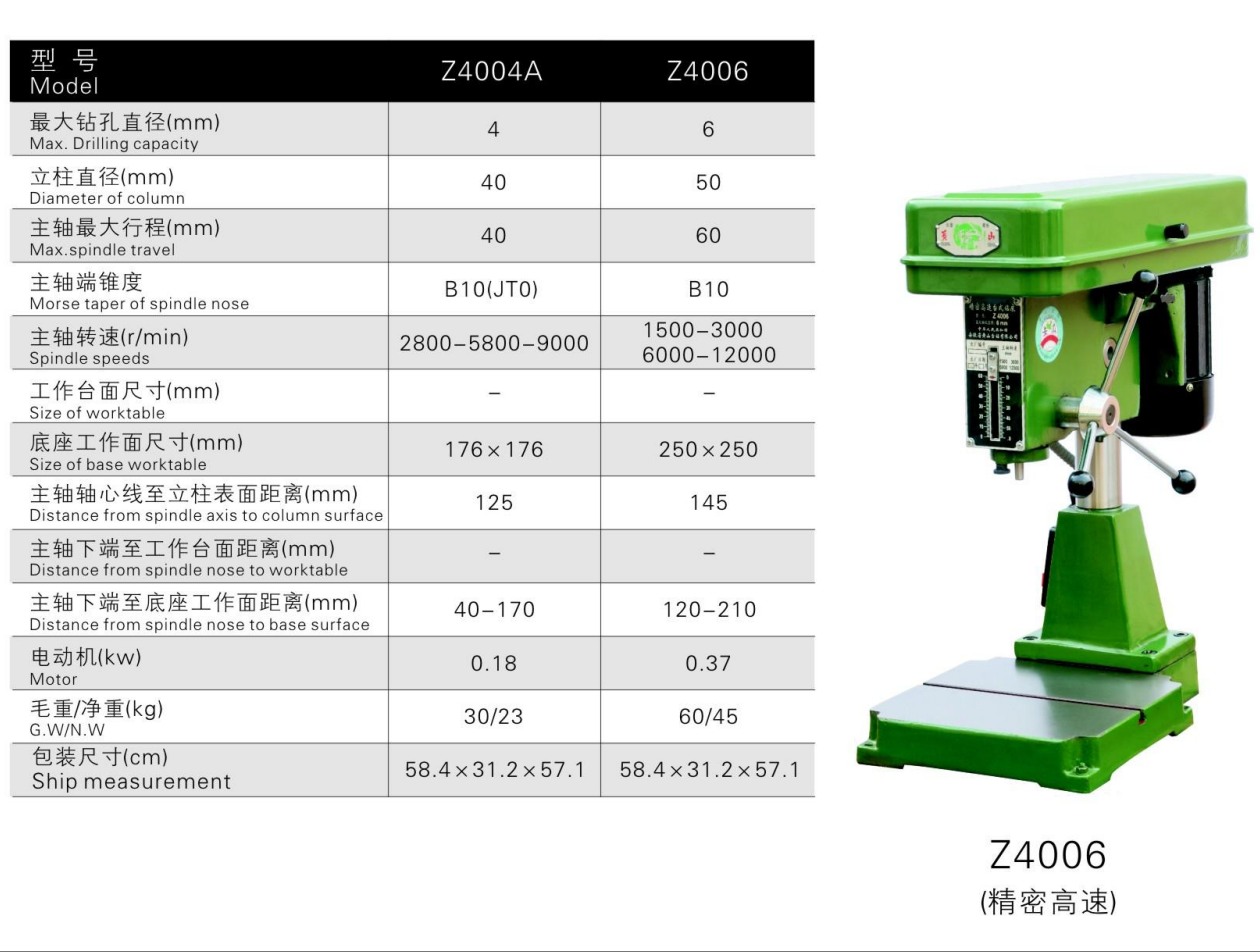

Model | Drilling Capacity | Spindle Speed | Motor Power |
|---|---|---|---|
Z4004A | 4mm | 2800/5800/9000 rpm | 0.18 kW |
Z4006 | 6mm | 1500-12000 rpm | 0.37 kW |
Z4006A | 6mm | 5000-15000 rpm | 0.37 kW |
Z4006B | 6mm | 1400-5600 rpm | 0.25 kW |
Z4112B | 12mm | 480-1400 / 2440-4100 rpm | 0.55 kW |
Z4116B | 16mm | 480-1400 / 2440-4100 rpm | 0.55 kW |
Our Precision Bench Drill Press Machine is designed for accurate, efficient, and reliable drilling operations in workshops, factories, and industrial production environments. With a rigid structure, high-precision spindle system, and stable drilling performance, this benchtop drilling machine provides excellent accuracy and durability for machining various materials including metal, plastic, and mechanical components.
The machine series includes multiple models such as Z4004A, Z4006, Z4006A, Z4006B, Z4112B, and Z4116B, offering different drilling capacities from 4mm to 16mm to meet diverse processing requirements. Whether for precision small-part machining or general industrial drilling applications, these bench drill presses deliver consistent performance and long service life.
The bench drill press features a solid cast structure and precision-machined components to ensure high rigidity and minimize vibration during operation. The stable column design improves drilling accuracy and provides smooth movement for repeated machining tasks.
The precision spindle assembly ensures reliable tool holding, excellent concentricity, and consistent drilling quality, making it suitable for applications requiring high accuracy.
Equipped with multiple spindle speed options, this drilling machine allows operators to select suitable cutting speeds according to different materials and drilling requirements.
The high-speed models can achieve spindle speeds up to 15,000 rpm, making them ideal for precision drilling of small components, while standard-speed models provide strong performance for general workshop applications.
The compact design makes the machine easy to install and operate, saving valuable workspace while maintaining professional drilling capability.
Key advantages include:
Space-saving structure
Easy operation and maintenance
Suitable for small workshops and production lines
Stable performance for continuous operation
The precision bench drill press machine is widely used in:
Mechanical workshops
Metal fabrication industries
Automotive component manufacturing
Hardware production
Electrical equipment manufacturing
Machinery repair and maintenance
Tool and mold processing
Educational and technical training facilities
High rigidity cast iron structure
Precision spindle design for accurate drilling
Multiple spindle speed selections
Available drilling capacity from 4mm to 16mm
Compact tabletop design
Reliable motor performance
Low vibration and smooth operation
Suitable for various metalworking applications
Designed for professionals who require accuracy, durability, and efficiency, our industrial bench drill press machines provide a practical solution for precision hole drilling applications. With different models and configurations available, customers can choose the ideal machine according to drilling capacity, spindle speed, and production requirements.
