Laser Cutting Machine 3015-1500
Xiongyi
Optimized for carbon steel and stainless steel
Stable Raytools CNC control system
Compact, cost-effective, and easy to integrate

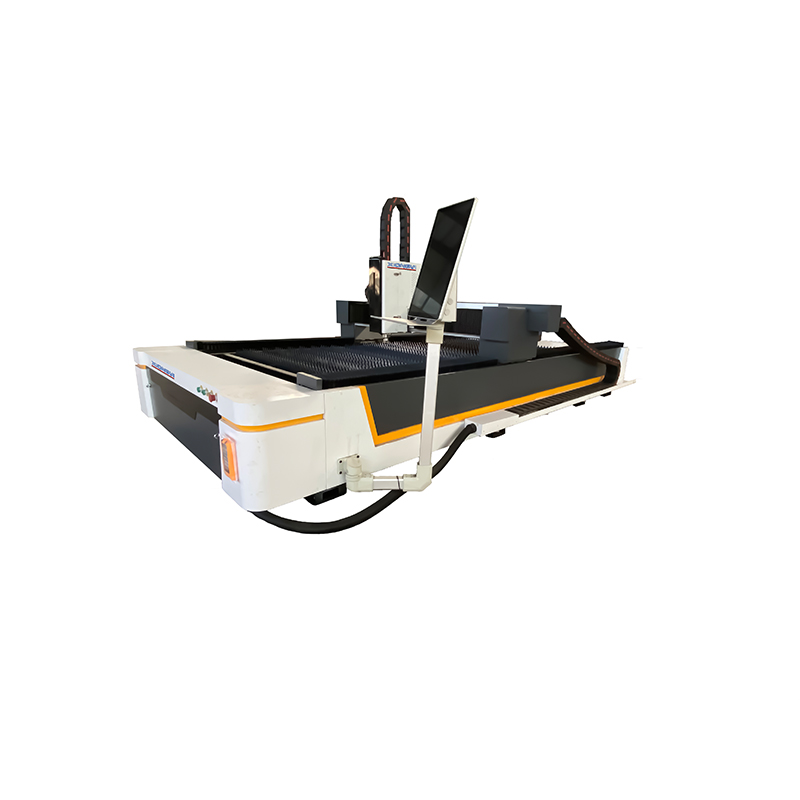

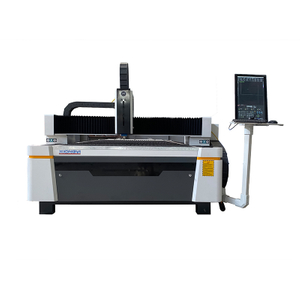

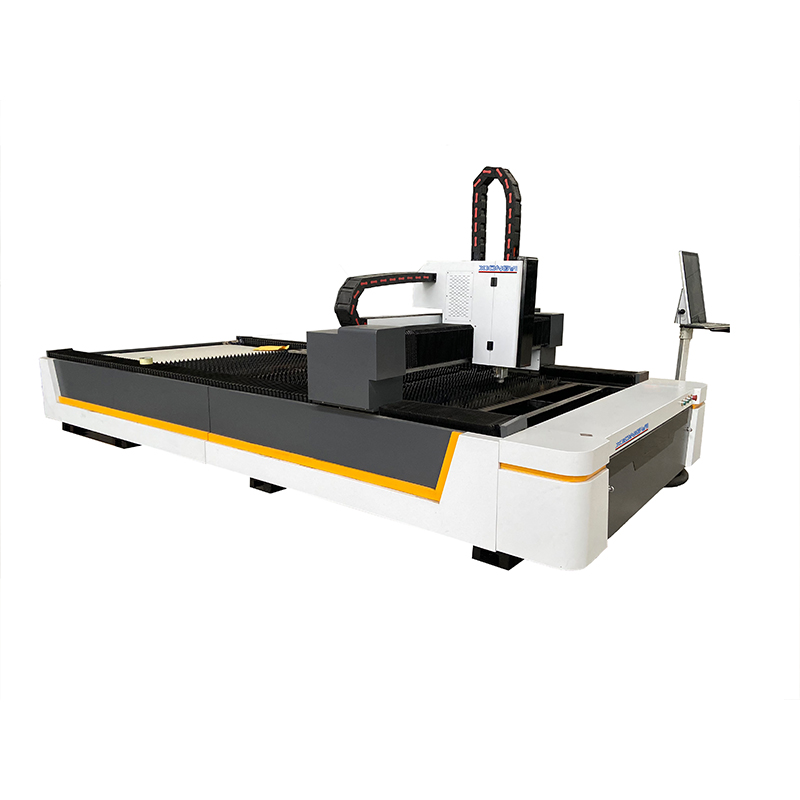

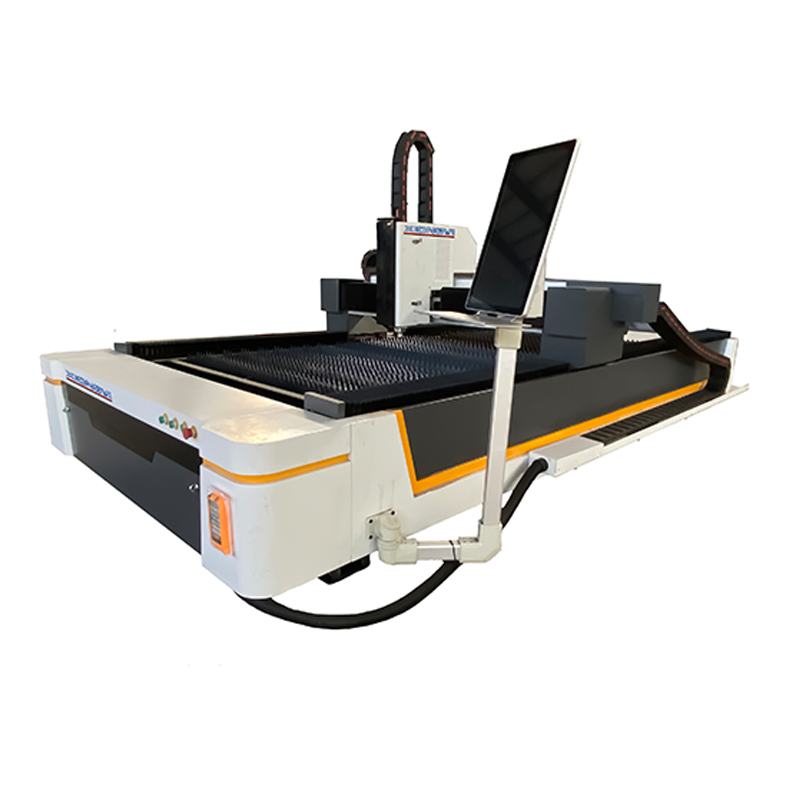

The 3015 1500W Fiber Laser Cutting Machine is engineered for high-performance metal sheet cutting, combining precision, durability, and efficiency. Below are its standout features and benefits:
Modular and redundant design for enhanced reliability.
Compact, lightweight, and easy to integrate into any production line.
Delivers consistent cutting quality and operational safety.
Manufactured by one of China's top laser technology enterprises.
Professional-grade control software ensures accurate and stable cutting.
Supports high-speed operation with precise motion control.
User-friendly interface for easier operation and programming.
Industrial-grade dual cooling for laser and cutting head.
Supports continuous operation without overheating.
Extends the life of key components and prevents performance degradation.
Built from aviation-grade aluminum alloy for maximum strength and low weight.
Offers excellent dynamic performance during high-speed cutting.
Maintains structural integrity and accuracy under heavy workloads.
Reinforced water and air pipes for safe operation in demanding conditions.
Reduces downtime due to pressure failure or pipe damage.
Enhances protection for linear guideways and moving parts.
Increases machine life by minimizing dust and debris interference.
Equipped with Leadshine servo motors for fast response and reliable movement.
Dual-drive on Y-axis ensures stability and cutting accuracy.
All electrical parts are sourced from Schneider Electric (France).
Guarantees electrical stability and long-term operational safety.
Special blade design protects the metal sheet surface during loading and cutting.
Maintains a clean finish, reducing post-processing requirements.
Simplifies material loading for large or heavy metal sheets.
Increases efficiency in production environments.
Includes ready-to-use cutting files for immediate operation.
Saves design time and speeds up workflow.
Comprehensive video guide covering mechanical, electrical, and software operations.
Perfect for training new operators or troubleshooting.
High-strength machine feet accommodate uneven flooring.
Ensures a stable platform for high-precision cutting.
Built-in parameter presets for various materials and thicknesses.
One-click settings for optimal cutting quality and efficiency.
Enhanced column design built for long-term use (10–20 years).
Stronger and more durable than standard market alternatives.
| Item | Specification |
|---|---|
| Model | 3015 1500W Fiber Laser |
| Cutting Area | 3000mm × 1500mm |
| Laser Power | 1500W |
| Max Cutting Thickness | 14mm (Carbon Steel), 6mm (Stainless Steel) |
| Positioning Accuracy | ±0.03mm/m |
| Repeatability | ±0.02mm/m |
| Max Speed | 70m/min |
| Acceleration | 1G |
| Voltage/Power | 220V / 11.5KW |
| Max Load | 2400Kg |
| CNC System | Raytools XC3000S |
Add high-quality images of:
Carbon steel cut (14mm)
Stainless steel cut (6mm)
Clean edge samples
Include alt text and filenames like:
| Component | Power (kW) |
|---|---|
| Laser | 4.5 |
| Machine | 4.0 |
| Chiller | 3.0 |
| Total | 11.5 kWh |
| Gas | Usage | Effect |
|---|---|---|
| Oxygen | 60 min | Bright black cut (1mm Carbon Steel) |
| Nitrogen | 15 min | Bright white cut (1mm Stainless Steel) |
| Air | Usable | Cost-effective alternative |
1× Fiber Laser Cutting Machine
2× Material receiving trolleys
Dual Cooling Water Chiller
2GB ready-to-use drawing files
8GB full operation videos
Remote control & tool box
Full dust protection and energy chain system
Laser Cutting Machine 3015-1500
Ready to improve your metal cutting precision?
[Request a Quote] [Contact Sales]
Q1: What’s included in your warranty?
A1: Enjoy peace of mind with our 13-month warranty(from the BL date), ensuring long-term reliability for your investment.
Q2: Can we tour your factory before placing an order?
A2: Absolutely! We warmly welcome all partners—new and existing—to visit our facility. Let us make your trip effortless: We’ll arrange airport/station pickup, assist with hotel bookings, and even help with travel tickets. Your satisfaction starts with transparency!
Q3: Do you keep ready-to-ship stock?
A3: To ensure freshness and customization, most machines are made-to-order. However, during exhibition seasons, you might snag a demo unit from our trade fair samples—ask us for availability!
Q4: What’s the minimum order quantity (MOQ)?
A4: Just 1 set! We cater to startups and large buyers alike, with no bulk constraints.
Q5: How do you guarantee product quality?
A5: Excellence is non-negotiable. We’re certified by: ✔ ISO9001, ISO14001, OHSAS18001, SA8000 ✔ CE, GS, EMC, UL (meeting EU/US standards) ✔ 90% export rate to 60+ countries, with rave reviews from Europe markets. Rest easy—we deliver world-class quality and service.
Q6: Do you offer technical expertise for customization?
A6: Yes! Our 20+ years of engineering experience and in-house design team stand ready to provide OEM solutions tailored to your needs.
Q7: Can you build machines to our specifications?
A7: Your vision, our craft. We specialize in bespoke designs—share your requirements, and we’ll bring them to life with precision.
