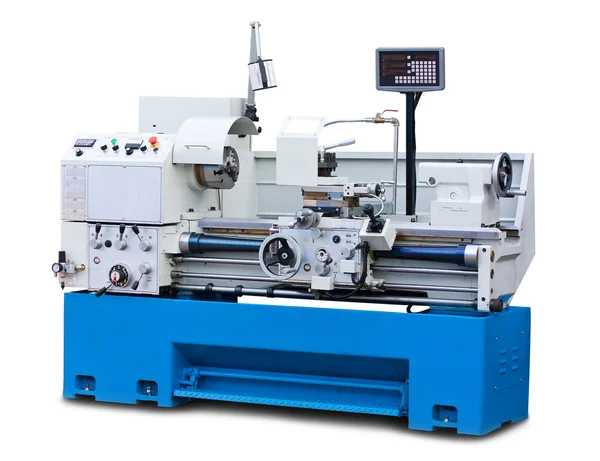

An engine lathe is one of the most common and fundamental metalworking machines used for turning operations. It is designed to machine rotating workpieces by removing material with a cutting tool, producing parts such as shafts, bushings, threads, and precision components.
Engine lathes are widely used in machine shops, repair workshops, educational institutions, and small- to medium-batch production. Due to their versatility and simplicity, they are often regarded as the foundation of modern lathe machining.
The term “engine lathe” originates from the early days of industrial manufacturing, when machining technology began to shift from manual labor to power-driven equipment. Understanding where this term comes from helps explain why engine lathes are still considered the foundation of modern turning machines today.
In the early stages of metalworking, lathes were operated entirely by hand, foot pedals, or simple belt systems. These machines relied heavily on the operator’s skill and physical effort, which limited both productivity and machining accuracy.
With the arrival of the Industrial Revolution, workshops began adopting steam-powered and later electrically driven systems. Once lathes were connected to these external power sources, they could rotate workpieces more steadily and maintain consistent cutting speeds. To distinguish these powered machines from traditional hand-operated lathes, the term “engine lathe” was introduced.
Historically, the term “engine” did not specifically refer to an internal combustion engine. Instead, it was a general engineering term used to describe any machine capable of producing or transmitting mechanical power. In other words, the original meaning emphasized the source of mechanical power, rather than the type of engine itself.
In the context of an engine lathe, the term “engine lathe” refers to a manual lathe powered by an external source, with the following characteristics:
Even today, with significant advancements in motors and CNC control technology, this definition remains accurate, as it precisely describes the core functionality and characteristics of an engine lathe.
Although modern workshops widely use electric motors and CNC systems, the term “engine lathe” is still commonly used to describe traditional manual lathes, especially general-purpose machines that are versatile and easy to operate.
Today, an engine lathe typically refers to a lathe capable of performing the following operations:
External turning and facing
Boring and drilling
Thread cutting and grooving
Its versatility, combined with a simple and robust mechanical design, makes the engine lathe still highly valued in various environments:
Therefore, the term “engine lathe” not only carries historical significance but has also become an industry-standard reference to distinguish traditional manual lathes from modern CNC lathes and other specialized turning machines.
The performance, accuracy, and stability of an engine lathe largely depend on its core structural components. Among them, the bed, headstock, and tailstock form the foundation of the entire machine and play a critical role in turning operations.
The bed is the main structural base of the engine lathe. It is typically made of high-strength cast iron to provide excellent rigidity and vibration damping. The primary function of the bed is to support and align all major components, ensuring stability and consistent machining accuracy during operation.
The headstock is mounted at one end of the bed and contains the main spindle, gears, and drive mechanisms. It supplies rotational power to the workpiece and allows for speed control. The design and precision of the headstock directly affect surface finish, concentricity, and overall machining quality.

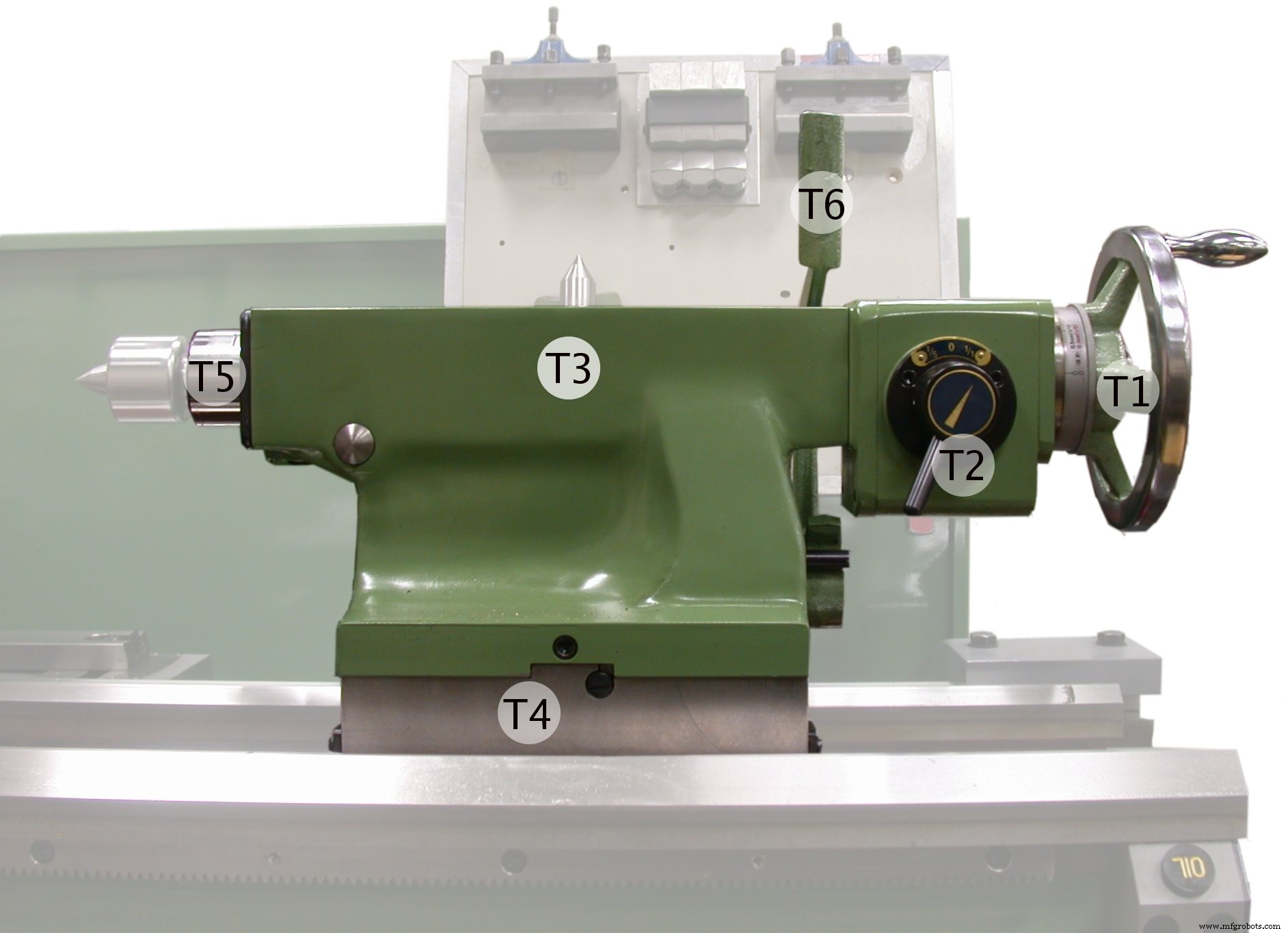

Positioned on the opposite end of the bed, the tailstock can slide along the guideways and be securely locked in place. It is mainly used to support long workpieces, reducing deflection and vibration during machining. The tailstock can also hold tools such as drills and reamers for drilling and finishing internal holes.

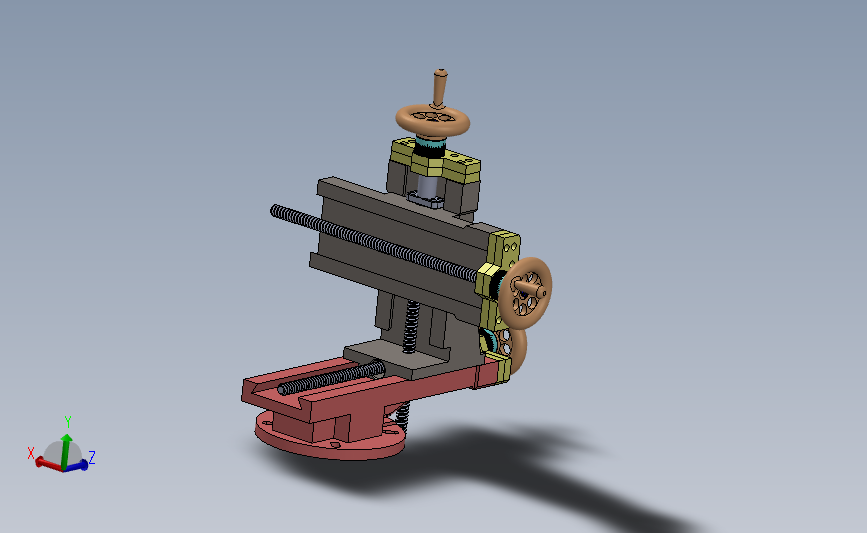

Controls the movement of the cutting tool
Enables longitudinal and cross-feed operations
In an engine lathe, the lead screw and feed rod are essential components that enable automatic feeding and precise threading operations. They play a critical role in machining accuracy, feed stability, and overall operational reliability.
The lead screw is primarily used for thread cutting. During threading, the lead screw engages with the nut on the carriage, synchronizing the tool movement precisely with the spindle rotation. This ensures accurate and consistent thread pitch. Because of the high precision required, the lead screw is generally used only during threading operations to minimize wear and maintain long-term accuracy.
The feed rod provides automatic feed for general turning operations, such as facing, external turning, and grooving. Power is transmitted through the feed rod to the carriage, allowing it to move at a steady and uniform rate. This improves machining efficiency and enhances surface finish. Compared to the lead screw, the feed rod is better suited for routine, continuous machining tasks.
The combination of the lead screw and feed rod allows an engine lathe to maintain threading precision while providing efficient and reliable automatic feed for other turning operations—one of the key reasons traditional manual engine lathes remain widely used today.
The engine lathe operates based on the relative motion between the rotating workpiece and the cutting tool, allowing precise material removal. The fundamental turning process includes:
This basic principle applies to a wide range of turning operations and forms the foundation for understanding engine lathe functionality.
Engine lathes generally provide two types of feed:
Ideal for single-piece or repair machining, the operator manually controls the tool movement. It offers flexibility for complex or non-standard operations, but machining speed and consistency rely on operator skill.
Power Feed
The feed rod drives the carriage automatically at a steady rate, providing uniform and consistent feed motion. This improves efficiency, ensures smoother surface finish, and is suitable for repeated operations or small-batch production.
Applications: Commonly used for positioning references, mating references, or sealing surfaces.

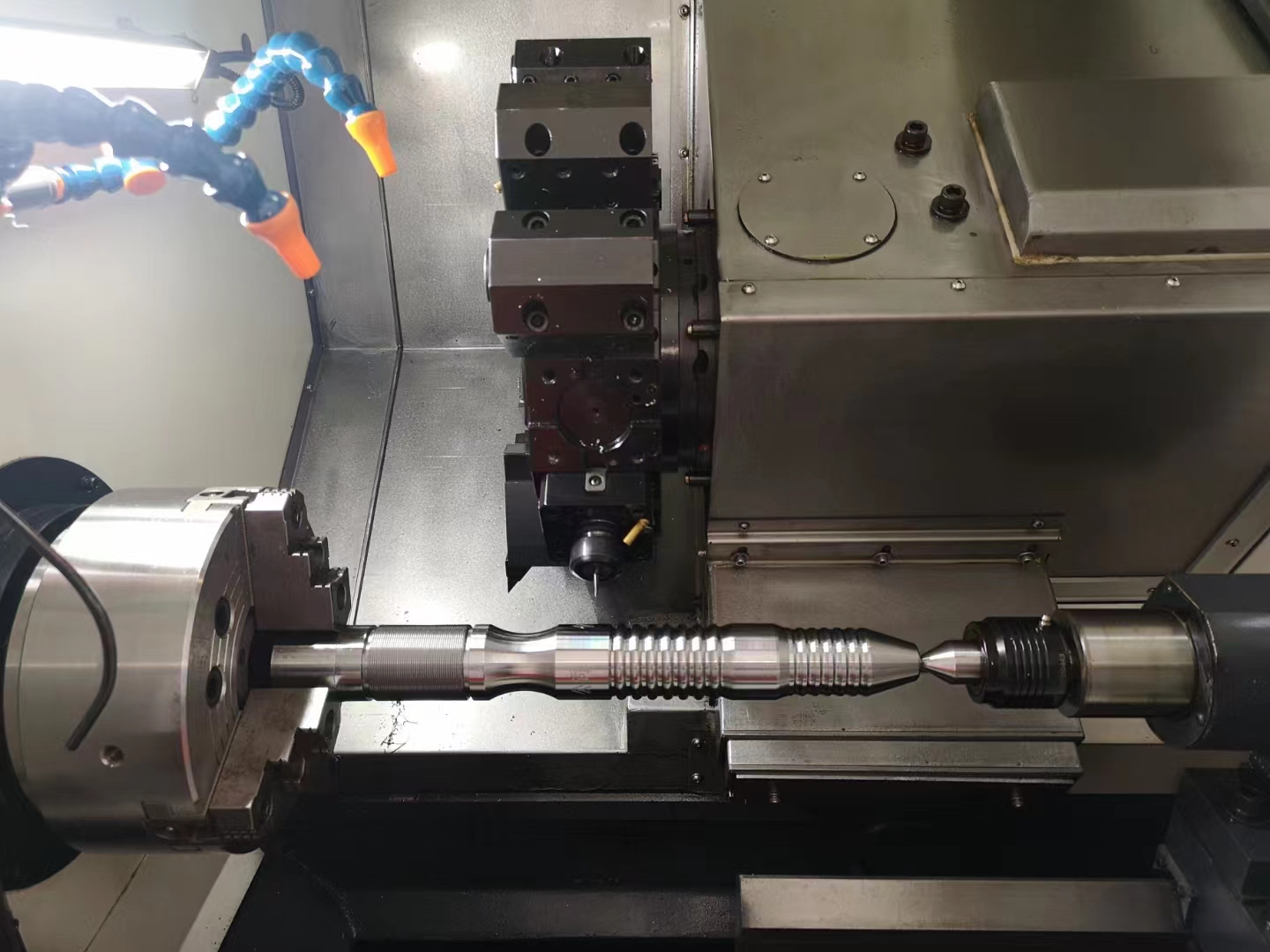

Applications: Machining of the outer diameter of shaft parts, sleeve parts, etc.
Application: Fine finishing of holes requiring high precision (such as bearing holes and mating holes).
Performed using tools mounted on the tailstock or fixtures.
Commonly used for shaft components, bushings, or other internal holes, ensuring accurate dimensions.
Thread Cutting: Supports both internal and external threads, including metric and imperial standards.
Grooving and Parting: Cuts grooves or separates workpieces, enabling functional features or parting operations.
These operations demonstrate the versatility and general-purpose capability of the engine lathe, which is why it remains widely used in repair shops, small-batch production, and training environments.
Engine lathes are highly versatile machines that have been used for centuries across various industries. Their robust design, precision, and flexibility make them suitable for a wide range of applications, from prototyping to small-batch production.

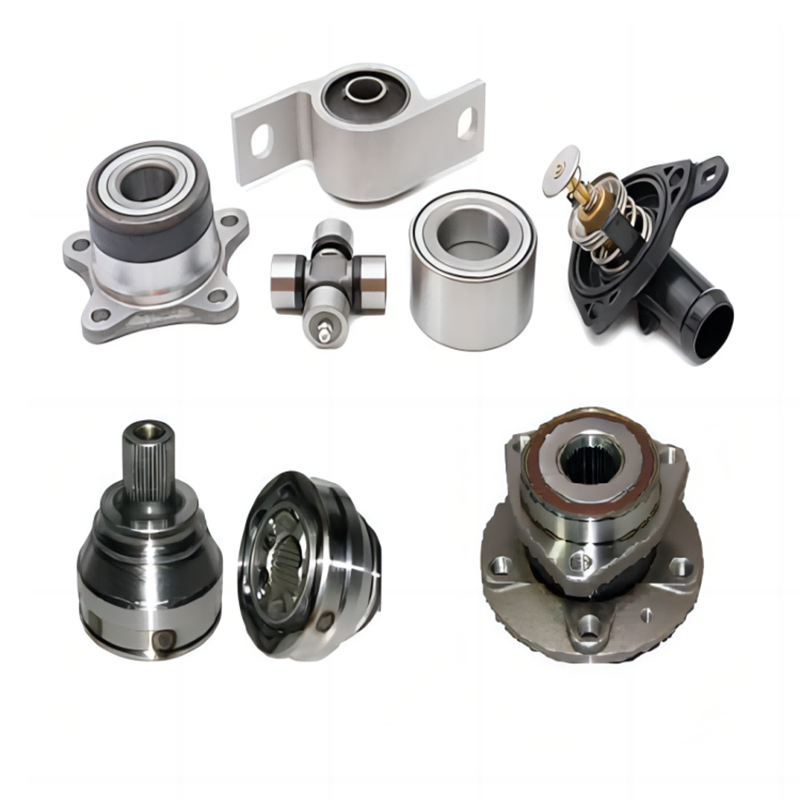

Shafts and Axles: Engine lathes are ideal for producing cylindrical components such as drive shafts, axles, and spindles with precise dimensions and smooth surface finish.
Flanges and Couplings: They can machine complex profiles for mechanical couplings, flanges, and other rotational parts.
Transmission Components: Essential for creating gears, pulleys, and other parts requiring accurate turning and threading.
Maintenance and Repairs: Engine lathes are widely used in repair workshops for refurbishing worn parts or producing replacement components.
Custom and Non-Standard Parts: Their flexibility allows operators to handle unique or low-volume workpieces efficiently.
Small-Batch Production: Suitable for short-run manufacturing where CNC machines may not be cost-effective.
Vocational Training: Engine lathes are a staple in technical schools and vocational programs, helping students understand turning operations and machining principles.
Engineering Education: Provides hands-on experience for engineering students to learn about mechanical motion, feeds, speeds, and tool selection.
CNC Fundamentals: Learning on a manual engine lathe builds the foundation for transitioning to CNC lathe operations.
Prototyping: Quick setup and adjustable feed make engine lathes suitable for prototype machining.
Metalworking Hobbyists: Small shops and hobbyists rely on engine lathes for precision work at an affordable cost.
Specialty Components: Custom fixtures, experimental parts, or specialty tools can be produced efficiently.
The combination of precision, durability, and versatility ensures that engine lathes continue to play an essential role in modern manufacturing, repair, and education. Their ability to handle a wide range of materials and operations keeps them relevant even in the age of CNC automation.
Engine lathes are versatile manual machines, but they differ significantly from other lathe types such as CNC lathes, toolroom lathes, and bench lathes. Understanding these differences can help workshops choose the right machine for their needs.
| Feature | Engine Lathe | CNC Lathe |
|---|---|---|
| Control | Manual operation | Computer-programmed |
| Cost | Lower initial investment | Higher initial investment |
| Flexibility | Highly flexible for varied tasks | Best suited for high-volume or repetitive production |
| Typical Use | Single-piece or small-batch production | Large-scale production and automated machining |
Engine lathes excel in small workshops, repair tasks, and custom projects because of their simplicity and low operating cost.

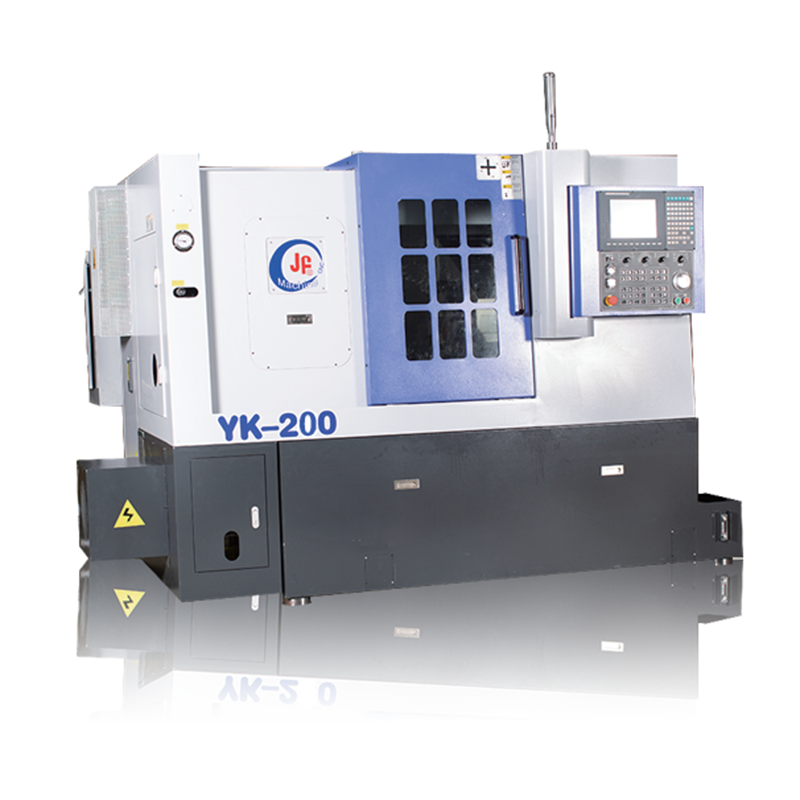

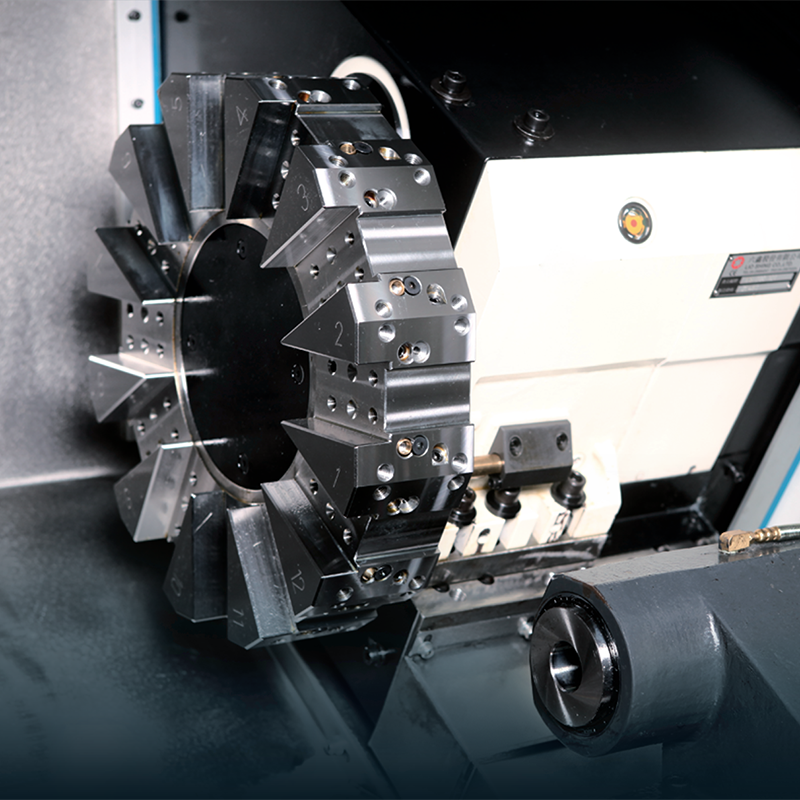

CNC lathes offer precision, repeatability, and automation, making them ideal for high-volume manufacturing where consistency is critical.
Toolroom Lathes: Designed for high-precision work, toolroom lathes are commonly used for prototyping and small, precise components.
Bench Lathes: Compact and lightweight, bench lathes are suitable for hobbyists or small parts but have limited capacity and cutting power.
Engine lathes strike a balance between general-purpose flexibility and reliable performance, making them the most common choice for workshops needing a versatile machine capable of handling a wide range of turning operations.
Engine lathes are manual, highly versatile machines, making them ideal for small-batch production, repair work, and machining education.
CNC lathes offer automation and high repeatability, but require higher investment and operating costs.
Toolroom lathes and bench lathes provide specialized precision or compact size, though their application range is more limited.
Understanding these differences enables machinists, workshop managers, and educators to select the most suitable lathe for training, production, or custom part manufacturing.
An engine lathe can perform a wide range of machining operations, including turning, facing, threading, and drilling. This makes it an excellent choice for workshops handling diverse and frequently changing jobs.
Straightforward mechanical design
Easy troubleshooting and maintenance
Minimal reliance on advanced CNC programming skills
These advantages make engine lathes especially suitable for beginners and small to medium-sized workshops.
Compared with CNC lathes, engine lathes require lower initial investment, operating costs, and maintenance expenses, particularly for small-batch, one-off, or custom machining tasks.
When selecting an engine lathe, pay close attention to the following parameters:
Swing over bed
Distance between centers
Spindle bore diameter
These specifications define the maximum size and type of workpieces that can be machined.
Adequate motor power for both roughing and finishing operations
Wide speed range to accommodate different materials and cutting conditions
Choosing a reputable manufacturer with strong after-sales support and readily available spare parts is essential for long-term, stable operation.
Regular lubrication of guideways and sliding surfaces
Inspection of spindle accuracy and bearing condition
Cleaning of lead screws and feed mechanisms to prevent chip buildup
Improper workpiece clamping
Incorrect spindle speed selection
Poor or unstable tool installation
Always wear appropriate personal protective equipment
Never wear gloves while operating the lathe
Ensure the workpiece and fixtures are securely fastened before machining
The engine lathe remains one of the most essential and widely used machine tools in the manufacturing industry. Its reliability, versatility, and cost-effectiveness make it a core piece of equipment in machine shops, training centers, and production facilities worldwide.
Whether you are learning machining fundamentals or managing flexible production needs, an engine lathe is a practical, dependable, and long-term machining solution.
