If you're involved in machining or turning, you've probably encountered a 3-jaw chuck. It's one of the most common tools in a machine shop, used for clamping round, cylindrical parts securely while they’re being worked on. But, have you ever wondered exactly what a 3-jaw chuck is and how it works?
In this article, we’re diving into everything you need to know about 3-jaw chucks, from their basic functionality to the different types and applications. Whether you're new to machining or looking to refine your knowledge, we’ve got you covered.
Before we get into the specifics of a 3-jaw chuck, let's first answer a fundamental question: What exactly is a chuck?
In mechanical engineering and tools, a chuck is a clamping device used to hold and secure a tool or workpiece in place during machining operations. It is typically found on machines such as drills, lathes, and milling machines.
Here are the main points:
The chuck holds the tool (e.g., a drill bit) or workpiece (e.g., a piece of metal or wood) in position while the machine operates on it. This ensures the object doesn’t move while the machine is cutting, drilling, or shaping it.
A chuck consists of a body, jaws, and a mechanism to adjust the jaws. The jaws grip the workpiece or tool and can be tightened or loosened to accommodate different sizes.
Drill Chuck: Commonly used in drills to hold drill bits.
Lathe Chuck: Used in lathes to hold and rotate workpieces for cutting or shaping.
Three-Jaw Chuck: A chuck with three jaws that move simultaneously to grip a circular object in a balanced way.

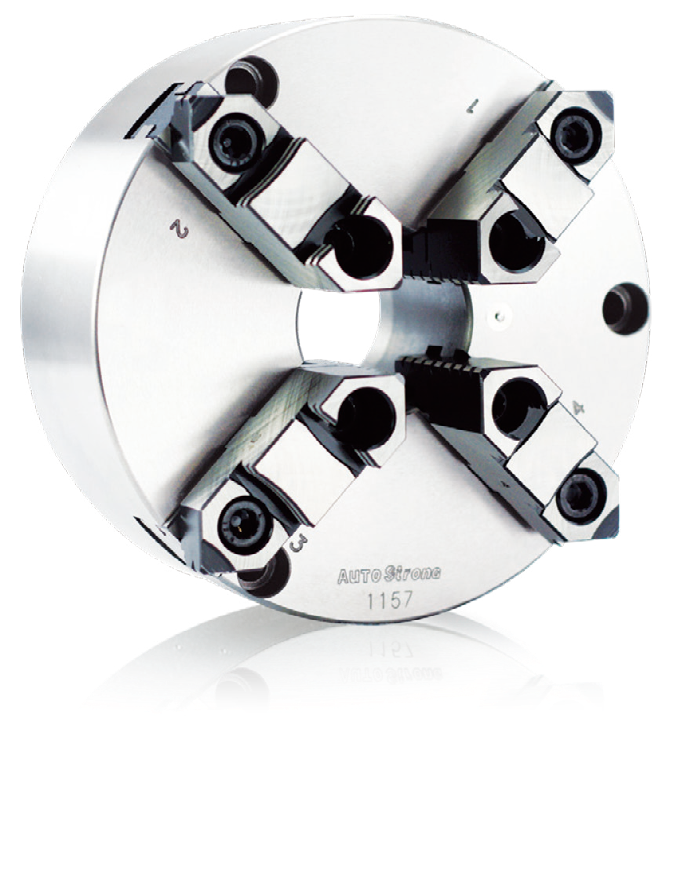

Four-Jaw Chuck: A chuck with four independent jaws, which can be adjusted individually, allowing for holding irregularly shaped workpieces.
In short, a chuck is an essential tool that helps secure other tools or materials during machining tasks, ensuring precision and stability.
A 3-jaw chuck is special because of its unique design and the way it holds and secures a workpiece. Here are the key features that make it stand out:
A 3-jaw chuck uses three jaws that move together when you adjust it. This is different from a 4-jaw chuck, where each jaw can be adjusted independently.
Because all three jaws move at the same time, it automatically centers the workpiece, which is especially useful when you're working with round or cylindrical objects like rods or pipes. The workpiece stays centered, which makes machining more accurate and quicker.
One of the main benefits of a 3-jaw chuck is that it’s self-centering. When you place a round workpiece in the chuck and tighten it, the jaws automatically align it in the center. This is helpful because you don’t have to manually adjust the piece to ensure it’s perfectly aligned—saving time and improving precision.
Since the jaws adjust together, a 3-jaw chuck is quick and easy to set up. You can load and secure a workpiece much faster compared to a 4-jaw chuck, which requires manual adjustments for each jaw.
The 3-jaw chuck is particularly suited for round or symmetrical workpieces. It's commonly used in lathe machines to hold cylindrical parts like rods, shafts, or discs.
A 4-jaw chuck allows for independent adjustments, which makes it better for holding irregularly shaped or non-symmetrical parts. However, the 3-jaw chuck is simpler to use and doesn’t require as much fine-tuning.
While the 3-jaw chuck is great for symmetrical objects, it’s less effective for irregularly shaped or non-circular workpieces. In those cases, a 4-jaw chuck may be a better option since you can adjust each jaw separately to hold the piece in place.
In short, what makes a 3-jaw chuck special is its ability to quickly and automatically center and secure round or symmetrical parts, making it a highly efficient tool in machining and turning operations.
Manual Chucks: These require you to manually adjust the jaws using a key or handle. While they take more time, they offer greater control over the clamping process.
Automatic Chucks: These use hydraulic, pneumatic, or electric systems to adjust the jaws automatically, reducing setup time and increasing efficiency.
More control over the clamping process
Can handle a wider variety of workpieces
More affordable and easier to maintain
Faster setup and operation
More consistent clamping force
Less operator involvement required
A 3-jaw chuck consists of a few essential components that work together to hold the workpiece securely:
Chuck Body: This is the main housing of the chuck, usually made of cast steel or other durable materials.
Scroll Plate: A spiral-shaped plate that moves the jaws when the chuck key is turned.
Jaws: The three gripping components that clamp onto the workpiece. These are adjustable and come in various forms (hard, soft, or reversible).
Chuck Key: This is the tool used to adjust the jaws manually (in manual chucks).
Insert the Workpiece: Place your workpiece inside the chuck. The jaws will be open at this stage.
Adjust the Jaws: Using the chuck key (or automatic system), adjust the jaws to clamp the workpiece. The jaws move together in a synchronized manner.
Secure the Workpiece: Tighten the jaws until the workpiece is securely clamped.
Start Machining: With the workpiece securely in place, the machine can begin performing operations like turning, drilling, or milling.
The beauty of a 3-jaw chuck is that the jaws adjust evenly to accommodate a range of sizes. However, for larger or more irregularly shaped workpieces, manual adjustment may be required to ensure a proper fit.
It's critical to ensure the jaws are properly aligned. Misalignment can result in uneven clamping force, which might lead to inaccuracies during machining. Regular inspections and maintenance can prevent this issue.

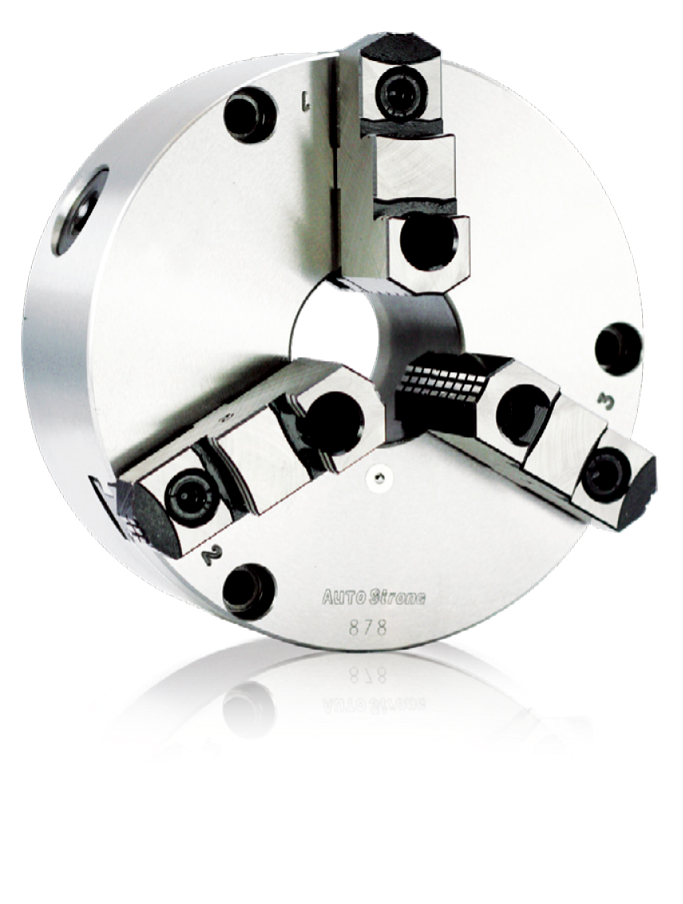

A manual 3-jaw chuck is operated by hand, often using a chuck key. While this type takes more time to adjust, it gives the operator full control over the clamping process.
Ideal for smaller shops or DIY projects
More affordable than automatic chucks
Gives the operator full control over clamping pressure
Small to medium-sized projects
When more flexibility in clamping is needed
For shops where manual labor is still preferred

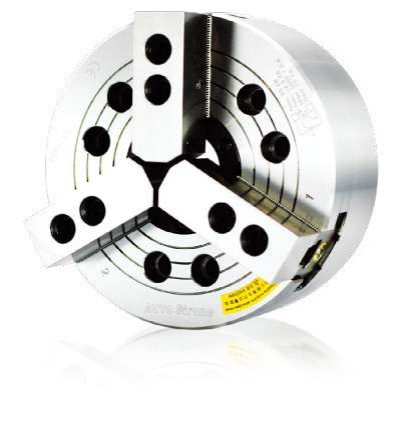

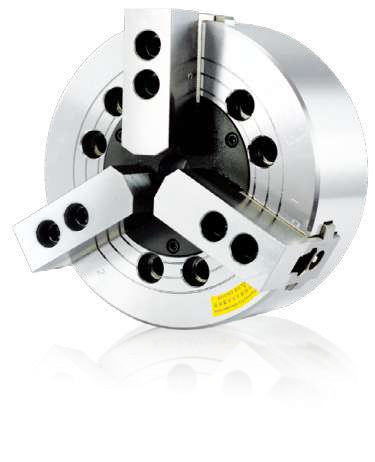

Hydraulic chucks use hydraulic fluid to automatically adjust the jaws. These are popular in high-speed operations because they can apply more consistent pressure than manual chucks.
Hydraulic pressure is applied to pistons that adjust the jaws. This system is more precise and requires less manual effort, making it ideal for high-volume production environments.
Consistent Clamping Force: Hydraulic chucks maintain consistent pressure, even during long machining sessions.
Faster Setup: They reduce the time it takes to change workpieces.
Better for Larger Workpieces: Hydraulic systems can handle larger parts with greater ease.
Pneumatic chucks use compressed air to move the jaws into position. They are similar to hydraulic chucks but are generally quicker to adjust and operate with less force.
Fast Adjustments: Pneumatic chucks are very fast, making them ideal for applications that require frequent setup changes.
Compact Design: These chucks tend to be lighter and more compact than hydraulic alternatives.
Light-duty machining tasks
Quick changeovers
Applications requiring high-speed, repetitive operations
Powered 3-jaw chucks are operated by electric or motorized systems, offering even more speed and automation than pneumatic and hydraulic chucks.
Power Source: Pneumatic chucks use compressed air, while powered chucks use electric motors.
Speed & Automation: Powered chucks are typically faster and more automated, requiring less manual intervention.
Electric-powered chucks are more commonly seen in CNC machines or automated systems. The electric motor provides quick and consistent jaw movement, reducing the need for manual operation and ensuring more precision.
Adjustable jaws allow for a more customized clamping force. You can adjust each jaw individually, providing a better fit for non-standard workpieces.
Soft jaws are used when dealing with delicate parts that might be damaged by the standard steel jaws. These can be easily replaced or customized for specific parts.
The chuck body is the main housing that contains the scroll plate and the mechanism that holds the jaws in place. It’s typically made from high-strength materials like cast iron or steel to withstand the pressure and forces involved in machining.
The scroll plate is what enables the jaws to move in unison. It’s a spiral-shaped plate that, when rotated, moves the jaws evenly to grip the workpiece.
It’s a mechanical part that ensures the jaws clamp the workpiece evenly. Without the scroll plate, the jaws would not move synchronously.
As the chuck key turns, the scroll plate moves the jaws, causing them to move together in the same direction. This ensures an even grip on the workpiece, which is critical for precise machining.
Hard Jaws: Used for heavy-duty workpieces that require a strong grip.
Soft Jaws: Ideal for delicate or custom workpieces that require a gentler grip.
Reversible Jaws: These jaws can be flipped to offer different gripping options, making them more versatile.
The pinion gear is what engages with the scroll plate to move the jaws. It works in tandem with the chuck key to ensure the jaws move correctly.
The chuck key is inserted into a small hole on the chuck body, which turns the pinion gear and moves the jaws.
Regularly checking the chuck key for wear and tear and ensuring the gear mechanism is functioning smoothly is crucial to maintaining the chuck’s efficiency and precision.
Some chucks require a back plate to mount securely to the spindle. The back plate is attached to the chuck body, ensuring a firm grip on the machine.
One of the key advantages of a 3-jaw chuck is its ability to quickly and easily secure a workpiece. Since the jaws adjust simultaneously, it takes less time to set up than other types of chucks.
This makes it a perfect choice for high-volume or mass-production environments, where time is money.
The synchronized movement of the jaws ensures an even, uniform grip on the workpiece, which is essential for achieving precise results in machining.
Since the jaws clamp down evenly, you can be confident that each part will be held with the same force, improving the quality and consistency of your finished product.
3-jaw chucks are used in a wide variety of industries, from automotive manufacturing to woodworking. Their versatility makes them indispensable tools in machine shops worldwide.
Whether you're working with metal, plastic, or wood, 3-jaw chucks can handle a variety of materials, making them a go-to choice for many machining tasks.
A major limitation of the 3-jaw chuck is that it works best with round or cylindrical workpieces. Irregularly shaped parts or non-symmetrical pieces can’t be held securely in a 3-jaw chuck.
For workpieces that are not perfectly symmetrical, a 4-jaw chuck may be more suitable, as it allows for independent adjustment of each jaw.
While 3-jaw chucks are great for general work, they don’t offer the level of precision that a 4-jaw chuck might. This can be a problem if you need fine adjustments or high levels of accuracy.
A 4-jaw chuck allows for independent jaw adjustments, providing more flexibility for precise, fine-tuned clamping.
While 3-jaw chucks are powerful, their clamping force may not be enough for extremely large or high-torque workpieces.
For large parts or parts that require significant force, you may need to consider more specialized chucks or clamping systems.
Another limitation is that 3-jaw chucks can't offset the workpiece for eccentric machining.
If you need to perform machining on off-center workpieces, a 4-jaw chuck or other specialized chuck is better suited for the task.
In conclusion, a 3-jaw chuck is a versatile and reliable tool for many machining operations, offering quick setups, strong grips, and a wide range of applications. However, it does have some limitations, particularly when it comes to precision and handling irregular workpieces.
If you primarily work with round, cylindrical parts, the 3-jaw chuck is your best bet. For higher precision or more complex workpieces, consider a 4-jaw chuck or another specialized chuck type. With proper maintenance, your 3-jaw chuck will last for years, delivering reliable performance every time.
